产品名称：高性价比相机型红外激光光束分析仪
所属类别：光束质量分析仪
厂家名称：德国Cinogy公司
产品简介：
关键词：红外激光光束分析仪，红外激光光束质量分析仪，红外光束分析仪，红外光束质量分析仪，通讯波段激光光束分析仪，通讯波段激光光束质量分析仪，
日前，德国Cinogy公司推出了其开发的IR-Module,这款IR-Module专门为1495-1595nm波段（C波段+L波段）激光光束质量分析而设计。他可以把1495-1595nm波段的激光转换成为CCD可以接受的可见光。
众所周知，1495-1595nm波段的激光光束分析一般采用InGaAs探测器阵列。但nGaAs探测器阵列得缺点也是显而易见的，价格昂贵，且分辨率低。
Cinogy IR-Module采用通用C-Mount接口，配合Cinogy公司生产的CinCam系列激光光束质量分析仪，即可非常方便对C波段+L波段的激光光束进行高分辨率实时的光束分析，是目前最通讯波段激光光束分析的最经济，效的解决方案。
| Active area: |
Dia.27.5mm |
| Eff. area: |
22mm x 16.5mm |
| Sensitivity: |
1495nm - 1595nm |
| Peak sensitivity: |
1510 / 1540 (multi peak response) |
| Resolution: |
12 lp/mm (active area) 40lp/mm (ccd focal plane) |
| Emission spectrum: |
950nm - 1075nm |
| Linearity: |
Non-linear (corrected by software) |
| Dynamic range: |
42dB (CinCam 1201) |
| Damage threshold: |
1 W/cm^2 |
| Demagnification: |
x0.29 (consider by software) |
| Beam diameter accuracy: |
5% - 10% |
|
|
| Dimensions: |
Dia 46mm x 97mm |
| Operating temperature: |
-10 degree to 40 degree |
| Weight: |
210g |
| Camera mount: |
C-mount |
| Camera format: |
Optimized for1/2 format " |

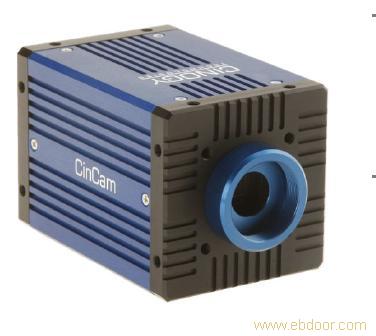

德国Cinogy公司Cincam系列相机型光束质量分析仪，提供更高的分辨率（1.4M像素至5M像素）和更小的像素尺寸（最小3.45μm x 3.45μm）。是各种连续激光器及脉冲激光器光束测量的不可多得的高性价比产品。此外Cincam光束分析仪通用的C-Mount 接口设计，使外加衰减片、扩束镜、紫外转换装置、红外转换装置更为方便。
|
CCD-1201 |
CCD-1301 |
CCD-2301 |
CCD-2302 |
|
SENSOR DATA |
|
|
|
|
Format: |
1/2” |
1/3” |
2/3” |
2/3” |
|
Active area: |
6.5mm x 4.8mm |
4.8mm x 3.6mm |
9.0mm x 6.7mm |
8.5mm x 7.1mm |
|
Number of pixel: |
1388 x 1038 (1.4MPixel) |
1292 x 964 (1.2MPixel) |
1388 x 1038 (1.4MPixel) |
2452 x 2056 (5MPixel) |
|
Pixel size: |
4.65μm x 4.65μm |
3.75μm x 3.75μm |
6.45μm x 6.45μm |
3.45μm x 3.45μm |
|
Spectral response without cover glass: |
350nm - 1100nm |
350nm - 1100nm |
350nm - 1100nm |
350nm - 1100nm |
|
Laser beam diameter (1/e2) min / max: |
46.5μm / 4mm |
37.5μm / 3mm |
64.5μm / 5mm |
34.5μm / 5.5mm |
|
Sensor cooling: |
passive |
passive |
passive |
passive |
|
CAMERA FEATURES |
|
|
|
|
|
Lens Mount: |
C-Mount |
C-Mount |
C-Mount |
C-Mount |
|
Bit depth (Output): |
14Bit |
14Bit |
14Bit |
14Bit |
|
Dynamic (Signal to noise): |
60dB (1:1000) |
59dB (1:900) |
67dB (1:2200) |
54dB (1:500) |
|
Frame rate: |
up to 15Hz |
up to 30Hz |
up to 16Hz |
up to 9Hz |
|
Exposure time: |
100μs-1s |
100μs-1s |
100μs-1s |
100μs-1s |
|
Interface: |
FireWire (IEEE1394b) |
FireWire (IEEE1394b) |
FireWire (IEEE1394b) |
FireWire (IEEE1394b) |
|
I / O connector: |
12-Pin Hirose |
12-Pin Hirose |
12-Pin Hirose |
12-Pin Hirose |
|
Mode: |
cw or pulsed |
cw or pulsed |
cw or pulsed |
cw or pulsed |
|
Trigger: |
TTL-signal |
TTL-signal |
TTL-signal |
TTL-signal |
|
Combinable with: |
IR- / UV-Converter Beam expander Attenuator |
Microscope lens Beam expander Attenuator |
Beam expander Attenuator |
Beam expander Attenuator |
|
SPECIFICATIONS |
|
|
|
|
|
Mechanical dimensions (W x H x L): |
60mm x 60mm x 103.8mm |
60mm x 60mm x 103.8mm |
60mm x 60mm x 103.8mm |
60mm x 60mm x 103.8mm |
|
Weight: |
300g |
300g |
300g |
300g |
|
Electrical requirements: |
DC 8V-36V |
DC 8V-36V |
DC 8V-36V |
DC 8V-36V |
|
Storage temperature*: |
-10°C…+60°C |
-10°C…+60°C |
-10°C…+60°C |
-10°C…+60°C |
|
Operating temperature*: |
+5°C…+45°C |
+5°C…+45°C |
+5°C…+45°C |
+5°C…+45°C |
|
Regulations: |
CE, RoHS |
CE, RoHS |
CE, RoHS |
CE, RoHS |
