产品名称：紫外激光光束分析仪
所属类别：光束质量分析仪
厂家名称：德国Cinogy公司
产品简介：
关键词：紫外激光光束分析仪，紫外激光光束质量分析仪，紫外光束分析仪，紫外光束质量分析仪
德国Cinogy公司推出了其开发的UV-Converter，这款UV-Converter采用C-Mount接口设计。可以非常方便安装在Cinogy公司CinCam系列光束质量分析仪上，以实现对紫外波段激光器的光束分析与时时监测。UV-Converter工作波段可覆盖100nm到500nm的宽阔范围，从而使CinCam系列光束分析仪实现从100nm到1100nm广阔测量范围。是准分子激光器、266nm、355nm等紫外波段激光器光束分析的必备工具之一。
| Technology: |
Fluorescence crystal |
| Thickness: |
0.5mm |
| Active area: |
(a): 6.4 x 4.8 mm2 (b): 9.6 x 7.2 mm2
(c): 19.2 x 13.8mm2 (d): 37.6 x 28.2 mm2 |
| Spectral response: |
110nm - 532nm |
| Fluorescent decay time: |
Depending on the crystal (0,5μs-3ms) |
| Resolution: |
5μm - 10μm |
| Dynamic range: |
> 5 orders of magnitude |
| Max. input intensity: |
1.5W/cm2 |
| Max. energy density: |
500mJ/cm2 |
| Max. average power: |
15W |
| Crystal stability: |
>107 pulses |

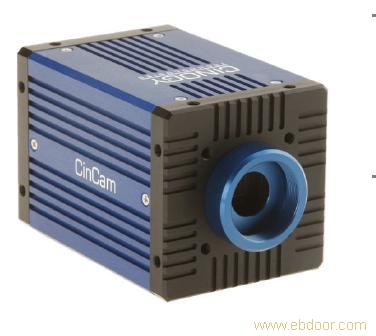

德国Cinogy公司Cincam系列相机型光束质量分析仪，提供更高的分辨率（1.4M像素至5M像素）和更小的像素尺寸（最小3.45μm x 3.45μm）。是各种连续激光器及脉冲激光器光束测量的不可多得的高性价比产品。此外Cincam光束分析仪通用的C-Mount 接口设计，使外加衰减片、扩束镜、紫外转换装置、红外转换装置更为方便。
|
CCD-1201 |
CCD-1301 |
CCD-2301 |
CCD-2302 |
|
SENSOR DATA |
|
|
|
|
Format: |
1/2” |
1/3” |
2/3” |
2/3” |
|
Active area: |
6.5mm x 4.8mm |
4.8mm x 3.6mm |
9.0mm x 6.7mm |
8.5mm x 7.1mm |
|
Number of pixel: |
1388 x 1038 (1.4MPixel) |
1292 x 964 (1.2MPixel) |
1388 x 1038 (1.4MPixel) |
2452 x 2056 (5MPixel) |
|
Pixel size: |
4.65μm x 4.65μm |
3.75μm x 3.75μm |
6.45μm x 6.45μm |
3.45μm x 3.45μm |
|
Spectral response without cover glass: |
350nm - 1100nm |
350nm - 1100nm |
350nm - 1100nm |
350nm - 1100nm |
|
Laser beam diameter (1/e2) min / max: |
46.5μm / 4mm |
37.5μm / 3mm |
64.5μm / 5mm |
34.5μm / 5.5mm |
|
Sensor cooling: |
passive |
passive |
passive |
passive |
|
CAMERA FEATURES |
|
|
|
|
|
Lens Mount: |
C-Mount |
C-Mount |
C-Mount |
C-Mount |
|
Bit depth (Output): |
14Bit |
14Bit |
14Bit |
14Bit |
|
Dynamic (Signal to noise): |
60dB (1:1000) |
59dB (1:900) |
67dB (1:2200) |
54dB (1:500) |
|
Frame rate: |
up to 15Hz |
up to 30Hz |
up to 16Hz |
up to 9Hz |
|
Exposure time: |
100μs-1s |
100μs-1s |
100μs-1s |
100μs-1s |
|
Interface: |
FireWire (IEEE1394b) |
FireWire (IEEE1394b) |
FireWire (IEEE1394b) |
FireWire (IEEE1394b) |
|
I / O connector: |
12-Pin Hirose |
12-Pin Hirose |
12-Pin Hirose |
12-Pin Hirose |
|
Mode: |
cw or pulsed |
cw or pulsed |
cw or pulsed |
cw or pulsed |
|
Trigger: |
TTL-signal |
TTL-signal |
TTL-signal |
TTL-signal |
|
Combinable with: |
IR- / UV-Converter Beam expander Attenuator |
Microscope lens Beam expander Attenuator |
Beam expander Attenuator |
Beam expander Attenuator |
|
SPECIFICATIONS |
|
|
|
|
|
Mechanical dimensions (W x H x L): |
60mm x 60mm x 103.8mm |
60mm x 60mm x 103.8mm |
60mm x 60mm x 103.8mm |
60mm x 60mm x 103.8mm |
|
Weight: |
300g |
300g |
300g |
300g |
|
Electrical requirements: |
DC 8V-36V |
DC 8V-36V |
DC 8V-36V |
DC 8V-36V |
|
Storage temperature*: |
-10°C…+60°C |
-10°C…+60°C |
-10°C…+60°C |
-10°C…+60°C |
|
Operating temperature*: |
+5°C…+45°C |
+5°C…+45°C |
+5°C…+45°C |
+5°C…+45°C |
|
Regulations: |
CE, RoHS |
CE, RoHS |
CE, RoHS |
CE, RoHS |
