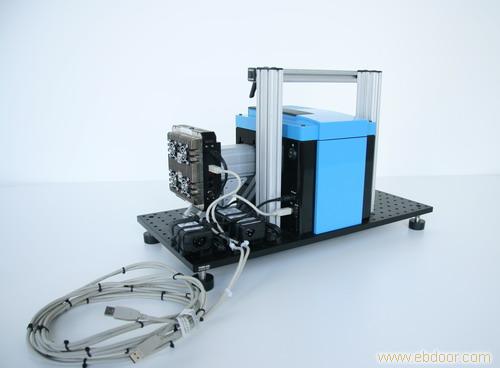

产品名称：宽带滤光片型高光谱成像系统
所属类别：高分辨率波前分析仪
厂家名称：加拿大Photon etc公司
产品简介：
HI系列高光谱成像系统，是高光谱遥感摆脱了繁琐的X-Y扫描。目前没有任何一项滤光技术，包括imaging FTS, Fabry-Perot, 声光滤波器（AOTF）以及液晶滤波器（LCTF）等能与其媲美。HI系列高光谱成像系统采用专利的布拉格可调谐滤波成像技术，这项技术不但具有独特的非色散性（性能与不随波长变换），而且还是目前市场上高光谱成像系统中效率的技术，它允许光谱信息及空间信息同时进行采集。
?
?
产品特点：
?
?超高的非偏振透过率：60%
?极窄的透射带宽：0.3~3nm
?极宽的调谐范围选择：400~2300nm
?高损伤阈值：
?的图像质量
?无需任何狭缝
?
参数指标：
?
?
|
? |
|
Available spectral window |
400 - 2300 nm |
|
Available bandwidths (FWHM) |
From 0.3 nm to 3 nm depending on wavelength |
|
Tuning range |
From 250 nm to 1300 nm |
|
Throughput (unpolarized) |
Up to 60% |
|
Wavelength relative resolution |
0.05 nm (for FWHM = 0.3 nm) |
|
Wavelength absolute accuracy |
0.1 nm (for FWHM = 0.3 nm) |
|
Damage threshold |
> 100 kW/cm2 average power? > 5 GW/cm2 peak power @ 1064 nm, 8 ns |
|
Aperture diameter |
<= 10 mm |
|
Dimensions (L x W x H) |
25.4 cm x 19.05 cm x 23.5 cm |
|
Operating temperature |
10 to 40°C? |
|
Storage temperature |
5 to 50°C |
|
Software |
included |
|
Computer connection |
USB 2.0 (compatible 1.1) |
|
Power supply |
100 - 240 V , 50 - 60 Hz? |
?
|
Accessory |
|
Input Optical System |
|
Output Optical System |
|
External Spectral Calibration |
|
Integration of CCD cameras (Apogee, Pixelfly, FLI) |
|
Intensity Calibration |
|
Microscope |
?
| Product Name? |
Spectral Range (nm)? |
Approx. Bandwidth (nm) |
| HI 675-2-LR? |
400 - 1000? |
2 |
| HI 675-2-HR? |
400 - 1000? |
0.4 |
| HI 1350-1-LR? |
1000 - 1750? |
3 |
| HI 1350-1-HR? |
1000 - 1750? |
1 |
| HI 1750-2-LR? |
1000 - 2300? |
3 |
| HI 1750-2-HR? |
1000 - 2300? |
2 |
?
如需进一步信息，请致电昊量光电。
