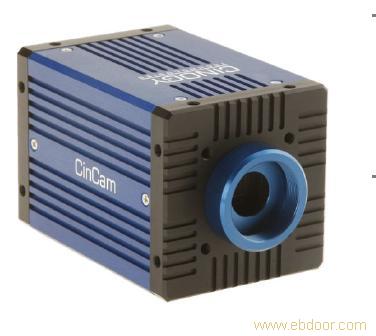

CCD-1201

CCD-1301

CCD-2301

CCD-2302

SENSOR DATA

Format:

1/2”

1/3”

2/3”

2/3”

Active area:

6.5mm x 4.8mm

4.8mm x 3.6mm

9.0mm x 6.7mm

8.5mm x 7.1mm

Number of pixel:

1388 x 1038 (1.4MPixel)

1292 x 964 (1.2MPixel)

1388 x 1038 (1.4MPixel)

2452 x 2056 (5MPixel)

Pixel size:

4.65μm x 4.65μm

3.75μm x 3.75μm

6.45μm x 6.45μm

3.45μm x 3.45μm

Spectral response without cover glass:

350nm - 1100nm

350nm - 1100nm

350nm - 1100nm

350nm - 1100nm

Laser beam diameter (1/e2) min / max:

46.5μm / 4mm

37.5μm / 3mm

64.5μm / 5mm

34.5μm / 5.5mm

Sensor cooling:

passive

 passive

passive

 passive

CAMERA FEATURES

Lens Mount:

C-Mount

C-Mount

C-Mount

C-Mount

Bit depth (Output):

14Bit

14Bit

14Bit

14Bit

Dynamic (Signal to noise):

60dB (1:1000)

59dB (1:900)

67dB (1:2200)

54dB (1:500)

Frame rate:

up to 15Hz

up to 30Hz

up to 16Hz

up to 9Hz

Exposure time:

100μs-1s

 100μs-1s

100μs-1s

 100μs-1s

Interface:

FireWire (IEEE1394b)

FireWire (IEEE1394b)

FireWire (IEEE1394b)

FireWire (IEEE1394b)

I / O connector:

12-Pin Hirose

12-Pin Hirose

12-Pin Hirose

12-Pin Hirose

Mode:

cw or pulsed

cw or pulsed

cw or pulsed

cw or pulsed

Trigger:

TTL-signal

 TTL-signal

TTL-signal

 TTL-signal

Combinable with:

IR- / UV-Converter Beam expander Attenuator

Microscope lens Beam expander Attenuator

Beam expander Attenuator

Beam expander Attenuator

SPECIFICATIONS

Mechanical dimensions (W x H x L):

60mm x 60mm x 103.8mm

60mm x 60mm x 103.8mm

60mm x 60mm x 103.8mm

60mm x 60mm x 103.8mm

Weight:

300g

 300g

300g

 300g

Electrical requirements:

DC 8V-36V

DC 8V-36V

DC 8V-36V

DC 8V-36V

Storage temperature*:

-10°C…+60°C

-10°C…+60°C

 -10°C…+60°C

 -10°C…+60°C

Operating temperature*:

+5°C…+45°C

 +5°C…+45°C

+5°C…+45°C

 +5°C…+45°C

Regulations:

CE, RoHS

CE, RoHS

CE, RoHS

CE, RoHS
