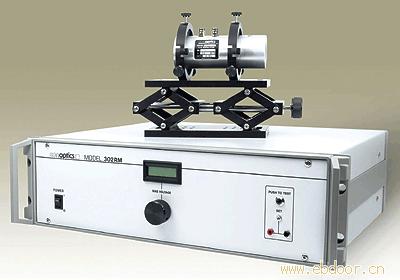

双光子,多光子显微专用激光功率控制系统

有 效 期: 长期有效
所 在 地: 上海市普陀区
配送信息:
供应数量:不限
了解详情,请立即咨询!



详细说明


Conoptics公司是双光子显微/多光子显微专用激光功率控制系统的先行者。Conoptics专门为飞秒钛宝石激光器的功率控制设计了一套相应的系统,这套系统也成为了多光子显微领域通用的解决方案。

Aperture

3.5mm

Dimensions

50mm Diameter x 135mm

Transmission

>90%

Standard Wavelength Ranges

700 – to – 1100nm

Piezo Resonances

Minimal with clamped version (BK option)

Driver Compatibility

Full modulation with M302 Power Amplifier up to 1064nm

  Amplifier Key Features:

Cabinet

Driver and power supply in single cabinet

Test Feature

Built-in test feature allows testing for max transmission of Pockel Cell without adjusting bias voltage

Input Impedance

Choice of amplifier input impedance by rear panel switch (50ohm/1K ohm)

DC Bias

Improved DC biasing of Pockel Cell provides greater linearity at higher bias voltages

Voltage Range

+/- 450VDC controlled by ten-turn front panel pot. Digital meter monitors differential bias applied to E.O. Modulator

Linearity

10bits referenced to full scale (.1%)

Bandwidth

DC to >200Khz with 90pf load and 3M (RG-62) cables

Max. Output Drive Level

750VP-P into 90pf load

Amplifier Input Signal

2VP-P max into 50/1K ohms delivers 750VP-P out

Input Signal Format

Options include Unipolar positive, negative or bipolar

Input Power (AC)

60W typical. Input power is both load (modulator) and frequency dependent.

Dimensions

19” Rack Mountable, 5.25”H(133mm) (3U) x 14”D (356mm)

Cooling

Forced air

Operating Environment

Designed for laboratory use (indoor only) Temperature range +5deg C to +50deg C ambient Humidity 20%-80% RH up to 32deg C Altitude <3000M

Weight

20lbs (9.07kg)
