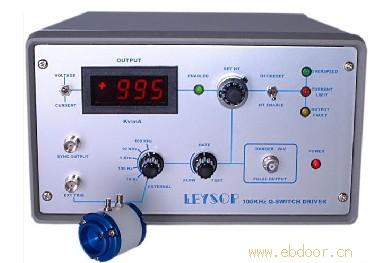

100kHz RTP Pockels cell Q-switch Driver
Repetition Rate		0 to 100kHz in five decade steps by internal or external generator
Output Voltage		+200 to +2,000V adjustable with visual display
Output Pulse		The standard system generates a positive going step function above zero. The generator can also be supplied giving a negative going step from the set HT level down to zero for quarter wave switching
External Trigger In		+3.0 to 10.0V min. 10ns f.w.h.m. into 50W
Synchronization Output		TTL approx. 30ns after trigger
Overload Protection		(1) Repetition rates above 100kHz
		(2) HT Current above 25mA
		(3) Output stage fault overload
		Protection occurs by automatic removal of the HT supply which can be re-instated by the reset switch
Power Input		Universal 90 - 265V a.c. 47 - 440Hz via fused IEC inlet
Dimensions		150(h) x 250(w) x 330(d) (mm) Mass: 6kg
Step Voltage at End of an Open Circuit 50W Line
50ohm co-axial cable length	Rise-Time		Flat Top	Fall Time	Maximum Frequency at 2kV	Maximum Voltage at 100kHz
125mm	5ns		175ns	400ns	80kHz	1,700V
250mm	5ns		160ns	500ns	66kHz	1,500V
500mm	<7ns		150ns	700ns	50kHz	1,300V
1,000mm	<8ns		120ns	1,000ns	40kHz	800V
