M5000系列线性差分放大器是为驱动具有较大通光孔径普克尔盒设计的。它由两个0.4~3.0kV线性放大器组成，能够产生不同的信号输出，以输入到调制器的任意一端。该放大器具有14KHz的带宽与小于5us的上升沿时间。

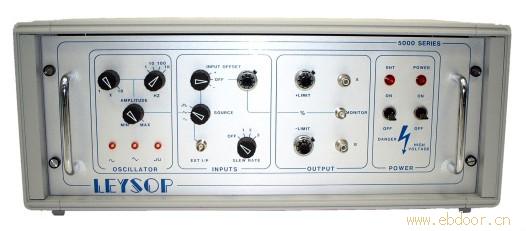

M5000 Pockels Cells driver (High Voltage Linear Differential Amplifier)
Output Voltage Range	400 - 3000V (each side)
Full amplitude Frequency Response	14 KHz
Small Signal Frequency Response (10% Full Amplitude)	100KHz
Rise and Fall Time	5μsec
Signal-Noise Ratio	50dB
Input Voltage	-2.5V to + 2.5V
Input Impedance	1000W
Cabinet Size (mm)	220 (height), 530 (width), 340 (length)
Mains Voltage	110/200/240ac 50-60Hz
